We just updated the Garage Sale page of the web site. Lots of goodies that will be moving fast. All items subject to prior sale. We will be constantly updating the page and adding things over the next few weeks. Check back often. Garage Sale Page

Gift Certificates!

Part Price In Stock
K&N Panel Filter
Fits in the stock air box. No worries install. This filter does not affect the air-fuel ratio and needs no additional tuning. Part of our lower price Stage Eleventeen Package and is totally happy making up to 400 hp at the wheels.
$56 Yes
AEM Intake
The AEM kit includes an oversized K&N filter, adapter to the air flow meter, a heat shield  and an upgraded turbo inlet pipe. You have a choice of red, blue or aluminum intake pipe (specify when ordering). Kit includes all necessary nuts, bolts, brackets, connecting hoses and hose clamps.
$205 Yes
Apex'i Turbo Timer with A/F Ratio Display

Cools down your turbo and also allows you to read the air/fuel ratio from your stock O2 sensor. Includes an ignition harness adapter for an easier install. Requires tapping into the ECU's O2 sensor wire to read A/F ratio.  More Info, Pics and Tips

$110 Yes
Turbo Timer Harness Only

This is included with the turbo timers that we sell. But if you bought your turbo timer from some e-tard that did not give you a harness along with it, we got it for you right here. works with Apex'i, GReddy, HKS, Blitz and all Japanese TTs.

$15 Yes



Manual Boost Controller
Ball and spring type with a CNC aluminum body. Easy to use and adjust by hand, no tools needed. Includes mounting bracket. Simple, consistent, and accurate. Pic
$50 Yes

AEM Tru-Boost Gauge/Electronic Boost Controller

AEM’s TRU-BOOST Gauge-Type Controller is an electronic boost controller that combines the simplicity of a manual boost controller with the added ease of adjusting boost levels through a gauge interface. There is no external interface required for set up, and it is fully functional right out of the box. There are no gimmicks or special software programs included. If you want more boost press the button on the right of the gauge face, and if you want less boost press the button on the left of the gauge face. It’s that simple, and IT WORKS!

More info and Pics

$295 Yes
EVO 9 BOV

If you have an EVO 8, the metal EVO 9 stock BOV is a nice easy upgrade. If you have an EVO 9 putting on an upgraded BOV is more a fashion and audible statement (not that there's anything wrong with that :-)



$140 Yes
Type-RS BOV Kit
This is an EVO specific kit. Includes adapter. The BOV is modified by us to fit clean, not rub the hoses, recirculate the air back into the turbo intake pipe and won't surge like other BOVs. The Type S BOV is the most adjustable and versatile BOV on the market today.

$230 (kit) Yes
RRE Billet Coil Cover

Made from billet aluminum, looks cute and also lets heat out from the top of the head. Includes stainless steel hardware.

Also available in polished or matt black anodized finish, add $25

$130 Yes

Apex'i  AFC Neo

The Apex'i S-AFC (Super Air Flow Controller) Allows fine tuning of the air/fuel ratio. It is perfect for compensating for an open air filter and exhaust mods that can make your EVO otherwise run rich. It's best use however is in allowing you to install larger fuel injectors. The S-AFC will compensate for the larger injectors and also allow you a little additional ignition advance at the same time. Excellent for applications for up to around 400 hp at the wheels. The best and easiest entry level fuel controller available for your EVO.
$350 Yes

ECU Jumper Harness EVO

Allows for an easier and cleaner install for the Apex'i AFC, the Zeitronix Wide Band O2 or anything else that requires splicing into at the ECU. This harness makes for an easier conversion back to stock if you need to take your EVO into Satan to have it looked at, also if you are constantly playing with things at the ECU it saves wear and tear on the factory harness. EVO 8

EVO 9

$100



$159

Yes



10

AFC Plug-In Package EVO 8

Apexi S-AFC Neo soldered into the ECU Jumper Harness

$460

Yes


Upgrade Fuel Injectors

More fuel will allow you to run higher boost. But you cant just put in bigger bigger injectors with out some way to control them, you would just run rich all the time. The ECU will still trigger the bigger injectors as if they were still stock. Each time they open however, more fuel will flow out. The car would be slower and you would just hit the ECU's fuel cut. A fuel controller like the AFC will trick the ECU into thinking that there is less air flow. It will then trigger the bigger injectors less and even things out. Since the ECU does not see all of the actual air flow, you wont hit the fuel cut off and you'll get better ignition timing advance. Note these are not the internet dormroom.com  cheapy brand. Stock EVO injector size is 560cc.

RC Engineering 1000cc
RC Engineering  750cc
GReddy/Denso   720cc
GReddy/Denso   660cc

$360/set
$360/Set
$440/Set
$440/Set
Yes
Walbro 255 LPH High Pressure Fuel Pump

This higher flowing direct fit fuel pump is an easy install. Best for cars running higher boost an up over 300 hp at the wheels. The stock fuel pump can deal with higher flows but not for long. It begins to overheat and flow drops off the more you beat on it. The Walbro pump will fix that. For cars running a consistent 450+ hp look into higher flowing options.

$100 Yes


Finally a true Plug n' Play Ignition for EVO 8. No more mis-fires on high rpm and boost. True Plug n' Play retains your factory harness. No cutting or splicing. On requires a direct lead to the battery. ARC-2 creates a more intense, shorter duration spark. This particular unit puts out more voltage, and double or more the stock spark energy.

Note, this kit requires the use of Montero coils (MD303922) since they don't have the ignitor built in the coils. We also stock the Montero coils or you can purchase them locally from your dealer.

Installation instructions Dynatek ARC for EVO 8  in PDF
ARC-2 instructions here. in PDF

ARC-2 kit for EVO 8- - $339.00
ARC-2 kit for Universal Applications - $310.00
ARC-2 kit for EVO 9 - $339.00
Montero Coils - $69 each, kit requires two (2) coils.

$359.00
EVO 8 only
Yes
NGK Spark Plugs
These are OE replacement and 1-2 heat range colder than stock for those who running crazy high boost. Colder plugs will retain less heat between combustion cycles, thereby reducing the tendency toward damaging detonation elevated boost levels.  8 and 9 heat range are recommended for those who track/drag their cars and boosting more than 22psi. Please specify EVO 8 or 9 when ordering.

BP7ES - $10 (set of 4) EVO 8 only
BPR7ES - $10 (set of 4) EVO 8 only
BP8ES - $12 (set of 4) EVO 8 only.
BPR8ES - $12 (set of 4) EVO 8 only
BP9ES - $12 (set of 4) EVO 8 only
ILFR7H - $12 (each, yes each! Since they are made from unobtanium!) OE replacement for EVO 9
Yes
GReddy Upgrade Intercooler Kit R-Spec Core

This larger GReddy intercooler is a direct bolt on with no cutting required. Kit includes larger aluminum piping from the turbo to the intercooler. Also a larger aluminum pipe from the intercooler outlet to just under the air box area. The 24R-Spec core has a higher efficiency inner tube design to dissipate heat better than the standard V-Spec core.

More Info and pics


$950

GReddy Upper Intercooler Pipe Kit

Larger polished aluminum piping that runs from behind the headlight area and up to the throttle body. This pipe is a tight fit but will clear the stock battery and the stock air box. Blue silicone couplers. Allows for the stock BOV or the GReddy Type RS BOV.

$225
GReddy Titanium Exhaust System

Light weight and beautiful.
More info and sound clips

$1300 1

MR  Turbo Outlet 0/2 Housing

Handcrafted polished all T-304 stainless steel including the flanges. Beautiful TIG welds and fully hand ported internally. Bolts to the stock DP or any of the aftermarket down pipes. If you are staying with the stock turbo or an upgraded turbo based on the stock turbo this will finish things off nicely.


$130 Yes
Tanabe Stainless Steel Down Pipe

2.75" Stainless Steel down pipe fits both the EVO 8 and all newer EVOs with the ADC system. Bolts to the stock catalytic converter and all aftermarket cats and delete pipes.

$250 5

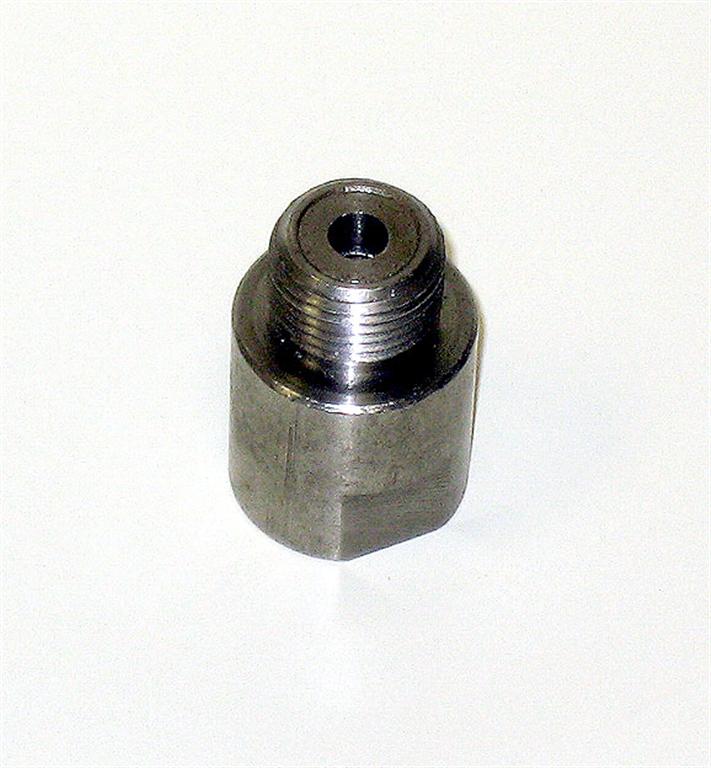

CEL Eliminator

Not really a simulator or fancy electronic box. Just an adapter to move the rear (downstream) O2 sensor out of the exhaust flow more to keep the check engine light from bugging you, should it be on for some reason :-/

$20 YES
HKS Cams

The 264 duration cams are the street cams, the 272 duration cams are the race cams. Everyone is building a "race" car in their mind, sure. But if you care about a silky smooth idle, get the street cams. Don't buy the 272s and run to a message board like a bitch and whine about the lumpity idle. If you think you have a street/race car... get the 264 intake and the 272 exhaust. It is a nice compromise.

264 Intake Cam
264 Exhaust Cam
272 Intake Cam
272 Exhaust Cam


$335 each

$650/Pair

8
7
9
5
HKS 280 "Race" Cams

The HKS 280's are meant heavily modified cars only. They are very lumpy and most cars would not idle unless you run some type of stand alone engine management system.  Upgraded valve springs, spring retainers, and adjustable cam gears are highly recommend to take full advantage of this grind. $40.00 off if purchased with AEM cam gears.

$335 each 10 sets
AEM Adjustable Cam Gears

AEM Tru-Time Adjustable Cam Gears are used by top racing teams across the country and are a must for engines that are milled, forced induction, high compression and/or utilizing aftermarket competition cams. Our gears enable users to match cam timing with their vehicle's tuning state by advancing or retarding the cam profile in one-degree increments via true laser-etched markings. Precision-cut gear teeth ensure no premature wearing of the belt surface and AEM's anodizing on the gear teeth is lab-test-proven to be the hardest anodizing process on the market.

  • Available in Silver, Red and Blue
  • Increase horsepower and torque without any cam changes, and are ideal for heavily modified engines
  • CNC-machined from 6061-T6 billet aluminum
  • True laser-etched markings on the leading edge of the gear allow for quick, accurate adjustments
  • Hard anodizing on belt surface is the most durable anodizing on the market
  • Grade-8, six-point hex bolts stand up to repeated adjustments and feature integral washer flange for greater load distribution
$160 each Yes
Zaklee Clear Timing Cover EVO 8

Clear timing cover made of tough  polycarbonate plastic lets you see those bling cam gears all spinning but still keep swarf and critters out of your timing belt. Plenty of clearance for all adjustable cam gears.

$79 Yes
RRE No Name Clutch Kit

2900 lbs clamp load, organic street disc that is easy on your driveline. Best of all, it looks stock for warranty purposes :-) We like it on cars up to about 350 hp. More info and pics

RRE No Name 2900 Heavy Duty Kit W/Street Disc
RRE No Name 3200lb  W/Street Disc

$500
$540
In Stock!

ACT Clutch Kit

We offer the ACT EVO clutch kits normally with the heavy duty street disc and Release Bearing.

ACT 2900 Heavy Duty Kit W/Street Disc
ACT 3200lb Extreme Kit W/Street Disc

Call or e-mail For Lowest Price!! Yes
Yes
ACT and RRE Clutch Replacement Parts

Street Disc Only (included in all clutch kits)
6 Puck Sprung Hub Disc Only
Factory Release Bearing, (included in all clutch kits)
Clutch Alignment Tool              (Not included in kits)



$140
$140
$65
$10

Yes
Stainless Steel Clutch Line

This -3 braided hose replaces the flexible rubber clutch fluid line that runs from the clutch master to the bracket on the transmission. This will help reduce pedal travel with heavy clutches.
$25 30
RRE No Name Lightweight Steel Flywheel

Forged in 4140 steel and weighing in at 10.7 lbs they are the best all around flywheel we could find. They can be resurfaced a few times with no trouble.

$220 8
Avid Billet Motor Mounts
We are stocking the 65 durometer. They are only good to about 750 hp they say so you big ballers may need the 75 or 90 durometer mounts special ordered grin These thing have a non destructible guarantee. Even if you crash the car they are warrantied.


Front Mount Only

Full Set of 4

$115

$395


Yes

Yes


Zeitronix Wide Band O2 Meter

An affordable wide band O2 meter with full datalogging capability. A sweet all purpose tuning tool that wont clutter up your a-pillar. Starting at $279. Can also read Boost, EGT, TPS and more.

More Info and Pricing

$279 and up Yes
AEM Engine Management System (EMS)

Plug in engine management. Get rid of the air flow meter (if you want).
More info, pricing and specs.

Pricing 1
Manifold Differential Pressure (MPD) Sensor Adapter

This billet adapter allows you to remove the stock MDP sensor and screw in a 1/8" NPT barbed fitting or AEM 3.5/5.0 bar pressure sensor to the stock 2G Eclipse or EVO intake manifold. Not necessarily intended for use with stock ECU vehicles. 2Gs running  a DSMLink  can disable the MDP sensor and bolt this up and use it as an extra boost source. Comes with 1/8"NPT barb fitting and you must reuse your stock o-ring.

RRE MDP adapter $25.00
$15.00 if purchased with an AEM or Zeitronix MAP sensor.






$25

Yes

AEM Water/Alcohol Injection Kit

The Water Injection Kit is a safe and economical way to reduce air inlet and combustion temperatures to increase boost pressure for more power. Lower air inlet temperatures allow users to advance timing without having to run higher-octane fuel. This is the most complete kit available on the market straight out of the box- no additional parts required.

AEM WATER INJECTION KEY FEATURES:
• Universal kit includes everything you need for installation
• Progressive, controller-driven 150 PSI pump
• One-gallon tank with integral fluid level sensor
• Dash light for system status and low fluid warning
• Alcohol Compatible (up to 50% in solution with water)
• Progressive controller, provides boost-dependent
variable flow
• Output provided to either decrease timing or boost if the system runs out of fluid or detects an error
• Includes three jets to match your power requirement



More Info and specs

.html User Manual, Instructions and more pics

.pdf User Manual, Instructions and more Pics

$379

Yes

Eibach ProKit Lowering Springs

These lower 1.3" front and rear. The only lowering springs you can trust to not go too low. Best bang for the buck for better handling, especially with an upgraded rear sway bar.


Stock vs Pro Kit

$220 2
RRE 25mm Adjustable Rear Sway Bar

This adjustable rear sway bar will make your EVO much more neutral handling. for better and for worse. Includes new brackets and urethane bushings Utilizes the stock end links. Pics and info

$195 20
RRE 27mm Race Adjustable Rear Sway Bar

Adjustable and similar to the above bar, but for the track junkie in mind. Consult your suspension set up guru before using this bar. Your suspension set up in it's entirety needs to be set up around using a BIG rear sway bar. Not for street kiddies. If you need it, you already know it and why. The full soft setting on this bar picks up where the full hard setting on the above bar leaves off.

$210 7
JIC Full Coil Over Suspension

More Info and Pics


Pricing We keep one set in stock

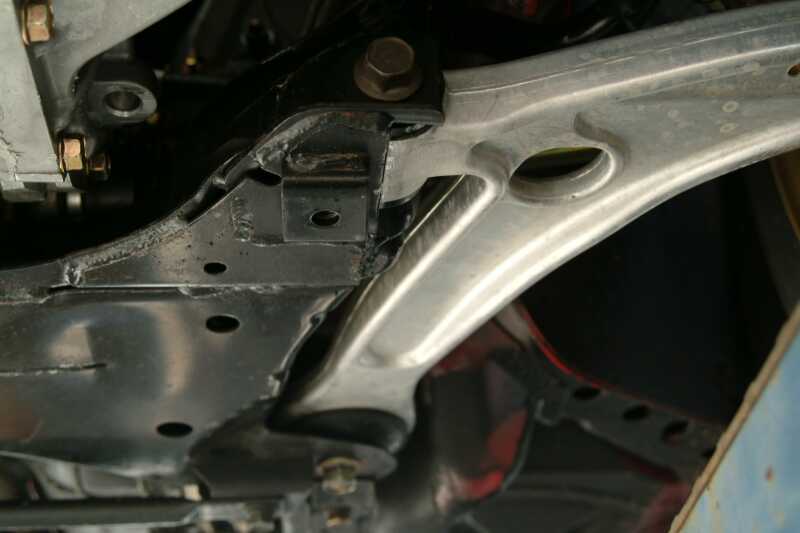

Energy Suspension Bushings

These are stiffer bushings that will take out mush of the unwanted flex in your suspension arms. The stock bushings (especially the rear arm bushings) have a whole bunch of slop and play built into them for God knows why. Whiners will notice a slight increase in road noise and whine about it (or at least theorize about it on some message board) and the cool kids will just install them, love them and go fast. Install requires removing the suspension arms, pressing out the old stock bushings and pressing in the new urethane bushings. Along with a good alignment and a rear sway bar upgrade, part of our Stage One suspension upgrade package.



Front Arm Set
Front Sway Bar Set
Rear Arm Set
Rear Diff Carrier





$60
$21
$23
$55









Yes







KYO-EI 52mm wheel studs

52 mm longer wheel studs enable you to run spacers or wider rims safely since there are more threads for the lug nut .  Perfect  replacement those worn, raggedy, old factory studs.  Stock length is 30mm.  Thread size is 12x1.5.  You can hammer out the old studs but remember you have to press the new one in.  20 per pack enough to do a one car.  Sorry we can't sell  individual studs, you can buy 4 studs at a time for $13.

Fits all common modern Mitsubishi cars.

$60 Set Yes
MUTEKI open ended lug nuts. A must for running longer wheel studs.
For aftermarket rims only
. Will not fit OEM wheels. Colors: Black or Chrome
$35 Set Yes
KYO-EI 10mm Billet Wheel Spacers.

Nothing special other than they are billet aluminum wheel spacers. 4 or 5 holes configuration with a PCD 98~114.3. Note these are not "hub-centric" and we don't recommend running anything thicker than 10mm regardless of longer and stronger wheels studs. $15 per pair

8mm Thick

10mm Thick

$15/pr

$15/pr

10

6

Centric Posi-Quiet Brake Pads

Essentially a stock style pad. Very low dust and not noisy at all.

$65 Front
$55 Rear
Yes
Project Mu NS Compound Brake Pads $95 Front
$85 Rear
Yes
Project Mu "B-Force" Brake Pads

We like these pads for all around street driving. No noises, no expensive wheel killing dust, and decent stopping. These are not a track pad, they are best for guys that swap in race pads for the track.

$100 Front
$90 Rear
Yes
12/15
Performance Friction Street Brake Pads

 These are PF's Z-Rated compound pads. Lined with a stainless steel backing to help reduce brake noise.  Not recommended for track day events.


$125 Front

Yes

Project Mu "Level Max-900" Race Pads

These are track day only pads. Not recommended for street use. They will chew up your rotors. These pads fill gap between the PF "Track Day Pads" and Hawk Blues.
$190 Front

$150 Rear

Yes

Yes

Performance Friction Track Day Brake Pads

These are the 95.7 compound, Streetable "race pads"  will not devour your rotors like a full race pad can, though they will need to warm up before any spirited driving and you will experience increased rotor wear and much dusting. Lined with a stainless steel backing to help reduce brake noise.

$170 Front

Yes

RRE Stock Brake Rotors

These are stock size high quality rotors.



$120pr/front

$100pr/rear

Yes
RRE Slotted Brake Rotors

These stock size high quality rotors are CNC milled in a directional pattern. The slots are then radiused and the rotors are balanced. The slotting helps reduce brake fade by getting rid of hot gasses between the brake pad and rotor. Braking in wet conditions is also improved. The rotor centers are black phosphate E Coated to stay looking good longer.

$230pr/front

$200pr/rear

Yes

Performance Friction Floating Rotors

These are stock diameter and thickness replacement rotors but with a true full "floating design" built into the hat. This floating design allows for proper heat expansion with out distortion. They are dimpled (not drilled) instead of slotted. Being a true floating rotor, when you mash the pedal with race pads and they're going to make a little noise like a Zzzzzzzzz sound  :-) Street pads will make a slight whirring noise to when braking.  Nice budget alternative until you save up enough lunch money to get the Stoptechs.

Price per rotor -  $330
Replacement rotor and hardware
Purchase these PF rotor with the following PF pads take an additional $10 bucks off.



$620/pair 6 sets
Stoptech Brakes

Bigger, lighter and stronger than even the biggee Brembos that come stock. Upgraded rear calipers and rotors available too.

More Info and Pics

Pricing Special Order
~1 week average
Stainless Steel Brake Lines

DOT Approved with strain relief ends. Direct replacement four line kit.

$95 Yes
Samco Silicone Radiator Hose

Silicone reinforced radiator hoses design to withstand heat and dress up the engine bay.   Please specify color when ordering.



$110
Black  only



Magnus Sheetmetal Intake Manifold

This proven manifold has been dynoed well over 600hp. Now included on all Magnus manifolds are 180 degree radiused CNC velocity stacks. We are stocking them flanged for a stock style throttle body, or $100 extra we can special order one flanged for a Mustang style throttle body.  If you ask a million questions, ask how to install it, ask why your upper intercooler pipe doesn't line up, and why do you need it... then maybe it's not for you.  Does not come with throttle body gasket or intake manifold gasket. Air fittings are included.



See below for goodies & options. Please allow 1-2 weeks for below options.
75mm Throttle Body flange welded to Magnus manifold add:         $40
Nitrous Bung  welded to Magnus manifold add:                                $40
Additional Fuel Rail for secondary injectors add                               $250
Anodize any choice of color add                                                         $85

$680 4
Torsen Type Front Limited Slip Differential  Quaife

While a limited slip front differential will give you better traction powering out of corners than the standard open differential, the best reason to buy one is to prevent breakage and damage from overworking the stock open differential. Quaife

More Info and pics

Call Call
Stainless Steel Scattershield

Most drag strips require the use of a Scattershield once you get into the 11's in the 1/4 mile. This stainless steel Scattershield will not only get you through tech inspection but will give you some piece of mind if things ever go bad with your clutch or flywheel at 7,000 RPM.

More Info and Pics

$199 Yes
Hard Core Engine Parts

More Info and Pics


Misc. Items, Trinkets and Goodies

More Info and Pics


Schroth Safety Harnesses

More Info and Pics

Pricing Yes





RRE EVO Tech Tips And Articles

Sport Compact Car Magazine March 2006 Project MR Article
RRE Stage 1 Power Upgrades
EVO 8 Fuel Pump Flow Rates EVO 8 Fuel Pump Dual Circuit Info
EVO 8 ECU Pinout Diagram EVO 8 Weights



License Plate Frame

Get a RRE License Plate Frame with any purchase. Just ask for it with your order.

Got a pic of your personalized plate with our plate frame on it? Send it in, we'll add it to our license plate frame photo page!
