RRE's 4G Eclipse
Megan Racing Coil Over Suspension Info

RRE 4G Eclipse Index

Order Form

Credit Card Usage and Shipping Info

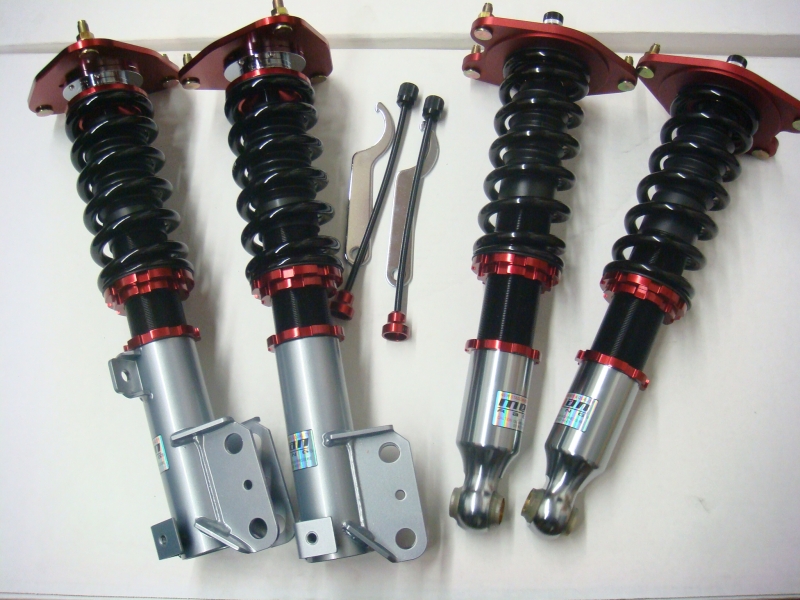

The kit includes everything you see here. $900.

Shipping runs about $30 in the US depending on where you live.

We sell them for $940 shipped to Canada by USPS Priority Mail

$990 shipped with import duties prepaid to Mexico by DHL.

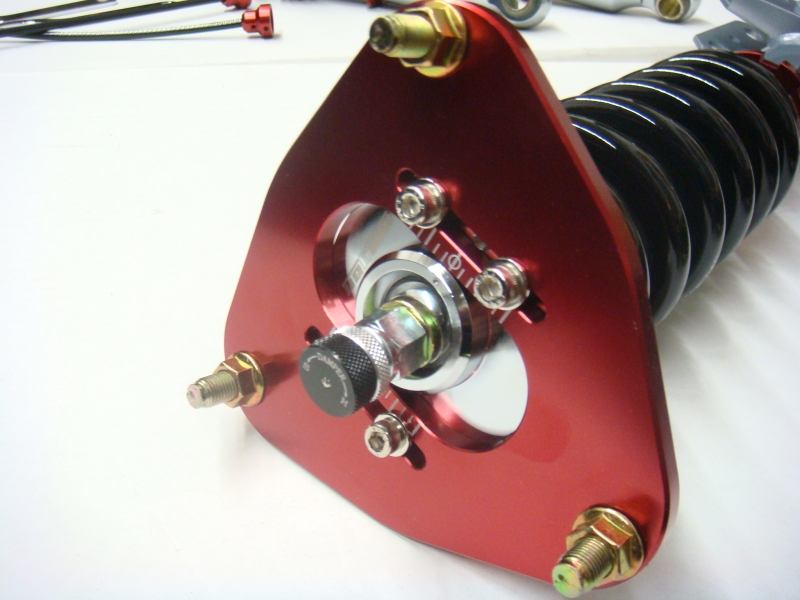

Camber plates allow adjustment from crazy negative autocross to straight up and down commuter low tire wear.

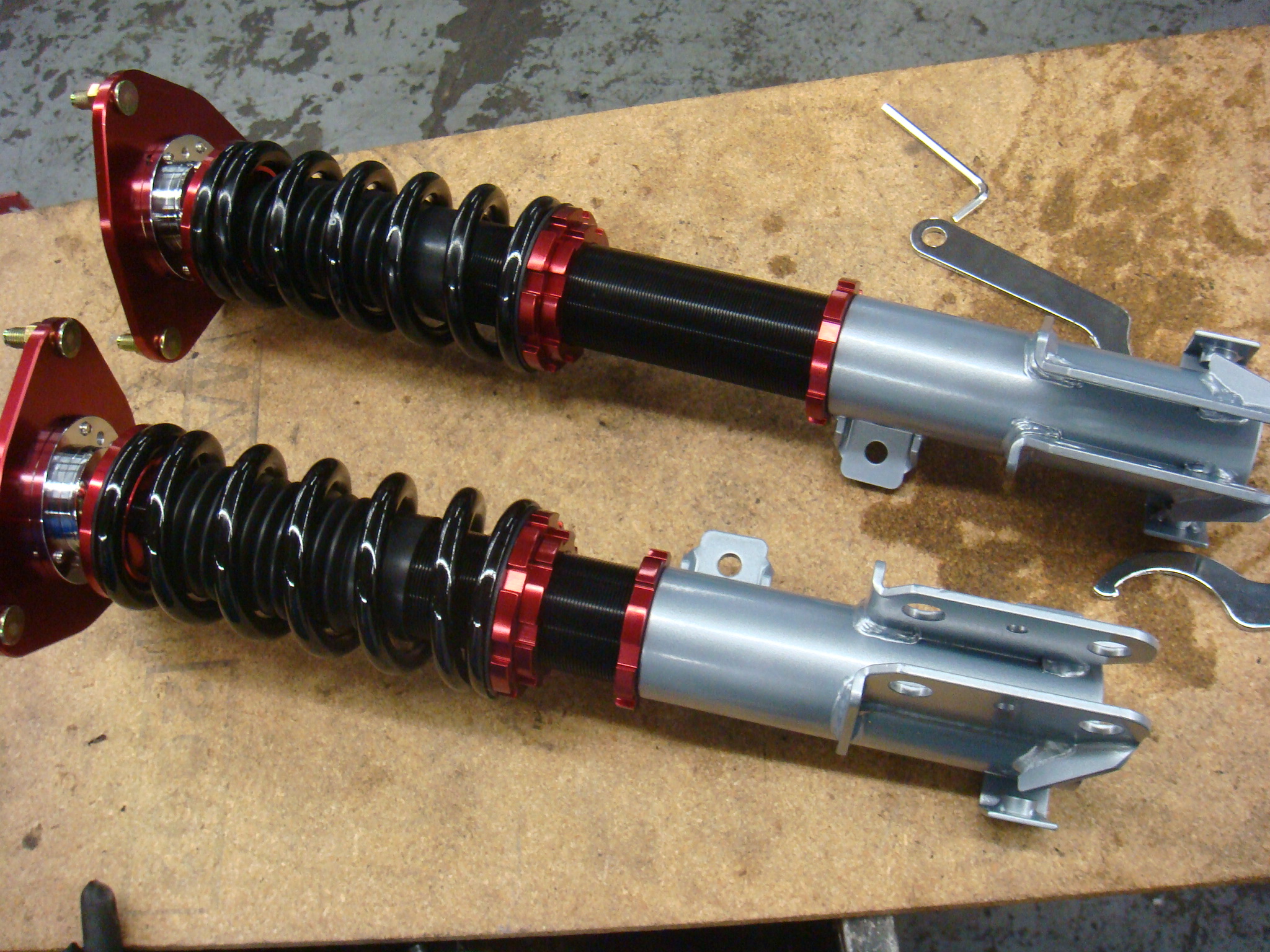

The front shock damping adjuster is easily accessible.

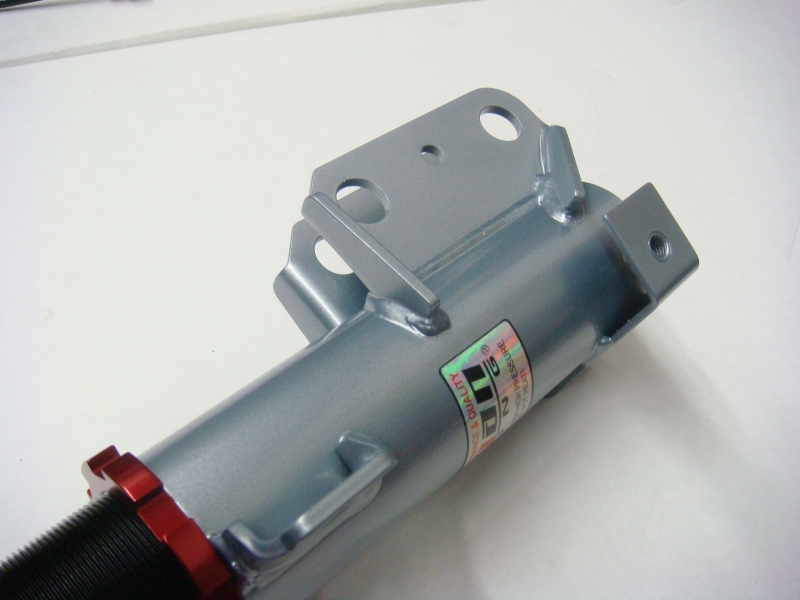

The lower strut bodies include all necessary mounting brackets for the ABS sensor cables and brake lines.

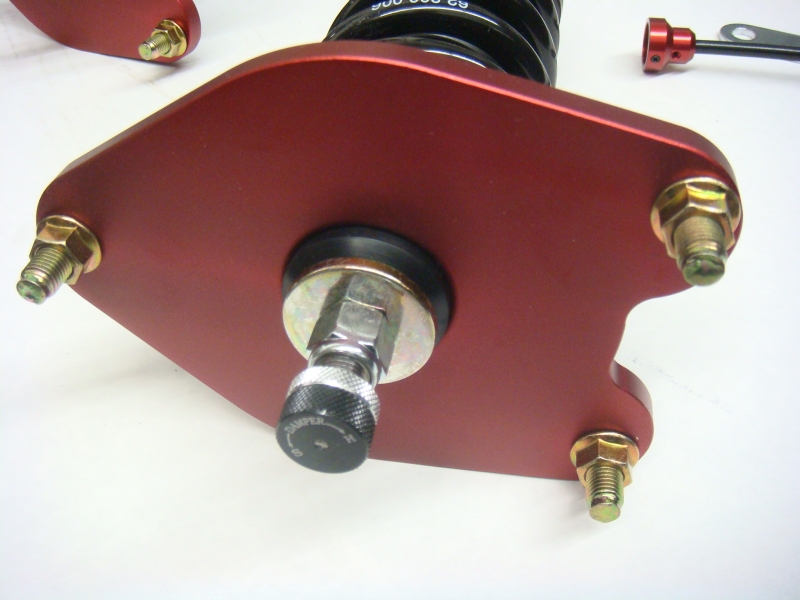

The rear upper plate. It is not a "camber plate" since the camber is controlled by separate arms in the rear.

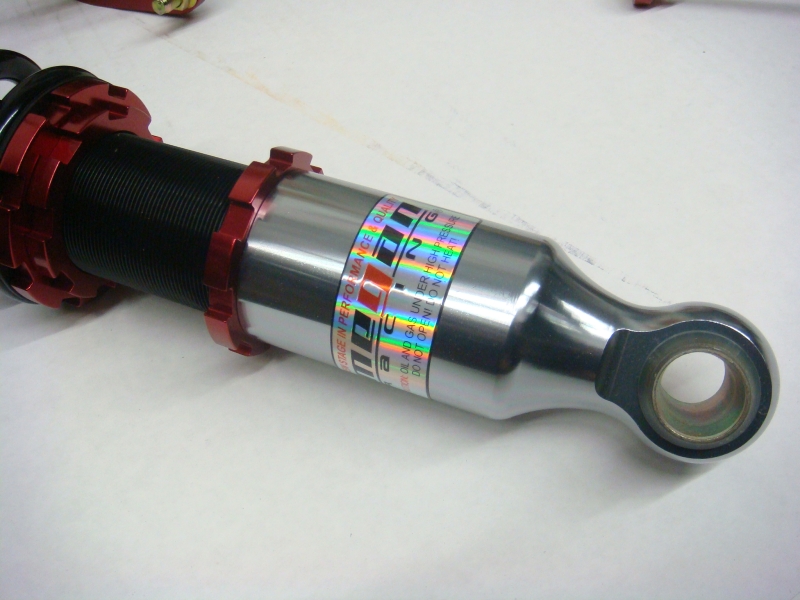

The rear shock lower mount and bushing.

Every time you change the ride height you will need to redo your alignment. Toe-in changes quite a bit if you raise or lower the car. Also changing the camber affects toe-in. This is the number one killer of tires!

The shock body length is adjustable allowing the ride height to be anywhere from an inch higher than stock all the way down to 2" lower than stock while still retaining good suspension travel. The tires hitting inside the wheel well is your limitation.

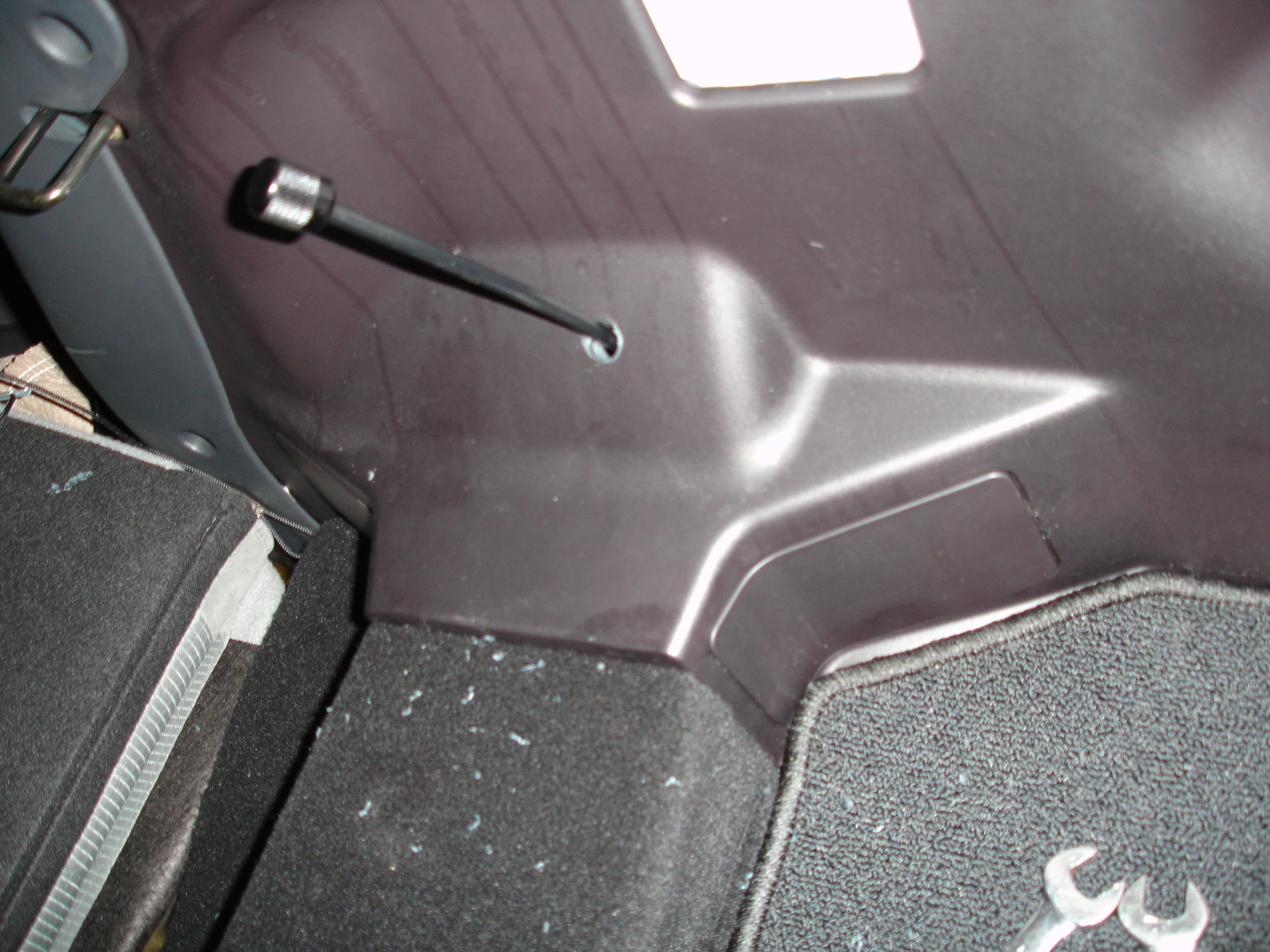

Access to the top of the rear shock to make damping adjustments is not possible. Megan's solution is to supply you with an extension cable so that you have an option of drilling a small hole in the interior plastic panel for adjuster access.



Info from Megan's web site:



Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 Levels of damper force adjustment, full-height adjustment, these damper kits are then perfectly matched with front and rear Pillow Ball upper mounts for camber correction in most applications.

The adjustment of the damper is as simple as can be with a built-in knob at the top of the damper mount for easy access. Simple adjustments can be made to tune to your style of driving and comfort level desired. Single-Adjustable dampers make suspension adjustments easy to tune whether youíre a professional mechanic or an automotive enthusiast with amateur mechanical skills.

The height adjustment is made easy with CNC-Machined locking perches for accuracy and smooth adjustment. You can raise your car up to factory height for OEM appearance with performance handling or you can drop your car all the way down for a formal racetrack and an aggressive stance lowering your center of gravity to gain full potential of your carís handling capabilities.

On most applications, the Megan Racing Damper Kits come with fully adjustable Pillow-Ball upper mounts to easily tune and adjust your camber. Adjustable camber gives you an edge on most suspension setups, as you can easily tune your car for any ride height which improves handling, predictability and furthermore tire wear, which is a great benefit both on the racetrack and on the street.

The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.

Features:

- Spring Rates: 10kg/6kg

- 32 Levels of Adjustable Damper

- Pillow Ball Upper Mounts.

- Rubber Dust Covers.

- Adjustable Ride Height

- Aggressive Spring Rates

- Single-Cylinder Design

- Aluminum Brackets

32 Levels of Adjustment:

1-8: Suggested for track use.
9-16: Suggested for mountain/aggressive use.
17-32: Suggested for common street use.

- All coilover damper kits come with 1 year manufacture-defect warranty.

- All Hardware is Included
