RRE's  Griffin and Spearco Intercooler Flow Charts



Available Flow and Size Data
Intercooler Core Face Width Face Height Cooling Face Area Charge Air Tube Width Charge Air Tube Height Number of Tubes Total Charge Air Tube Area
Spearco
2-178 19.5 7.25 141.4 3.125 .230 11 7.90
2-115 18.0 5.5 99.0 3.125 .230 34 24.44
2-209 18.0 7.0 126.0 2..562 .230 10 5.89
2-205 23.5 12.5 293.75 3.125 .230 18 12.93
Griffin
18 x 6 18 5.75 103.5 2.625 .3125 24 19.68
24 x 6 24 5.75 138 2.625 .3125 32 26.25
24 x 8 23.25 5.75 186 2.625 .3125 31 25.42
20 x 10 20 10 200 2.625 .3125 13 10.66
23 x 11.5 22 11.5 253 2.625 .3125 15 12.30


18" wide by 6" tall, top to bottom flow

24" wide by 6" tall, top to bottom flow

24" wide by 10" tall, top to bottom flow

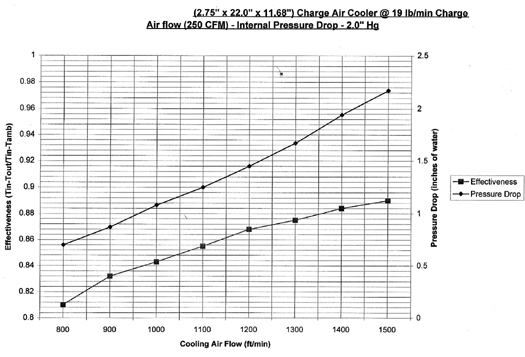

22" wide by 12" tall, side to side flow

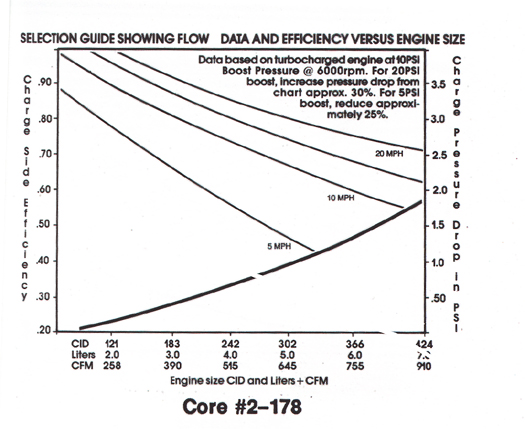

Spearco Intercooler Flow Charts

Spearco 18" wide by 6" tall, top to bottom flow

Spearco 20" wide by 8" tall, side to side flow
