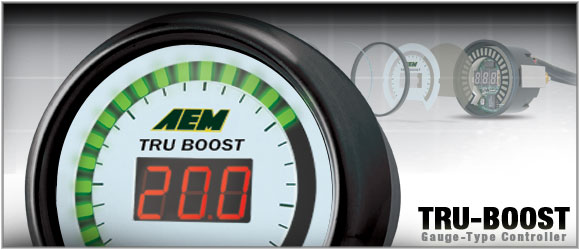

TRU-BOOST Gauge-Type Controller

AEM’s TRU-BOOST Gauge-Type Controller is an electronic boost controller that combines the simplicity of a manual boost controller with the added ease of adjusting boost levels through a gauge interface. There is no external interface required for set up, and it is fully functional right out of the box. There are no gimmicks or special software programs included. If you want more boost press the button on the right of the gauge face, and if you want less boost press the button on the left of the gauge face. It’s that simple, and IT WORKS!

AEM’s TRU-BOOST Gauge-Type Controller includes everything you need, including an on-board 29 psig pressure sensor, built-in Overboost protection with two timed shutdown levels, a scramble boost setting and a low-side output for a warning light. AEM offers a 75 psia boost sensor for high boost applications (sold separately).

AEM’s boost control solenoid (included) is the only one specifically manufactured for automotive boost applications, which means it won’t corrode and stick from exposure to rich fuel mixtures, it is pressure tested to 100 psi and includes -4 AN fittings to eliminate any chance of leaks.

No external interface required for programming!

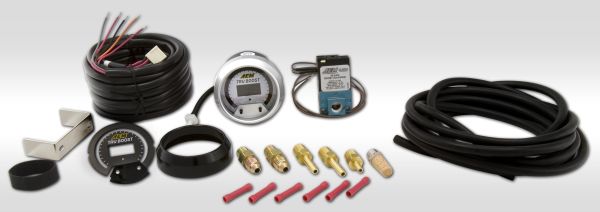

Complete system includes harness, boost hose, on-board 29 psig pressure sensor (external 75 psia optional), boost solenoid, gauge display and all necessary fittings
Quick connect technology eases the installation process
Two user selectable boost settings with peak boost memory
Scramble boost setting allows user to momentarily change boost levels
User selectable Overboost alarm includes two timed shutdown levels at 10% and 20% Overboost
User configurable gauge includes 24 scalable LEDs, and interchangeable bezel, pin guide and faceplate to customize look of display
One (1) low-side output included for warning lights





FAQs - TRU-BOOST Gauge-Type Controller

Do you have more questions about AEM Electronics products?

I run a higher boost level at the track than I do on the street. Does the TRU BOOST Gauge have multiple boost settings?

Do I need a laptop to configure the TRU BOOST Gauge?

What is the warranty on AEM electronics?

How much boost is the TRU BOOST Gauge capable of controlling?

What is the warranty on AEM electronics?

Q:  Do you have more questions about AEM Electronics products?
A:  Please visit the AEM Electronics forum! Our forum contains detailed technical information for all of our electronics products. Click here to visit the forum!

Q:  I run a higher boost level at the track than I do on the street. Does the TRU BOOST Gauge have multiple boost settings?
A:  Yes, it has two adjustable boost settings. You can also deactivate the boost solenoid so boost is determined at the wastegate.

Q:  Do I need a laptop to configure the TRU BOOST Gauge?
A:  No, the TRU BOOST Gauge-Type Controller is completely stand alone and is fully adjustable using the two buttons on the gauge face.

Q:  What is the warranty on AEM electronics?
A:  Please note that before we can issue a Returned Merchandise Authorization number (RMA) for AEM Electronics products, it is first necessary for the installer or end user to contact our Electronics tech line at 1-800-423-0046 to discuss the problem. Most issues can be solved over the phone. Under no circumstances should a system be returned or RMA requested before the above process transpires.

Advanced Engine Management Inc. warrants to the consumer that all AEM High Performance products will be free from defects in material and workmanship for a period of twelve (12) months from date of the original purchase. Products that fail within this 12 month warranty period will be repaired or replaced at AEM’s option, when determined by AEM that the product failed due to defects in material or workmanship. This warranty is limited to the repair or replacement of the AEM part. In no event shall this warranty exceed the original purchase price of the AEM part nor shall AEM be responsible for special, incidental or consequential damages or cost incurred due to the failure of this product. Warranty claims to AEM must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in duration to the said 12 month warranty period. Improper use or installation, use for racing, accident, abuse, unauthorized repairs or alterations voids this warranty. AEM disclaims any liability for consequential damages due to breach of any written or implied warranty on all products manufactured by AEM. Warranty returns will only be accepted by AEM when accompanied by a valid Return Merchandise Authorization (RMA) number. Credit for defective products will be issued pending inspection. Product must be received by AEM within 30 days of the date RMA is issued.

Do you have more questions about AEM Electronics products? Please visit the AEM Electronics forum! Our forum contains detailed technical information for all of our electronics products. Click here to visit the forum!

Q:  How much boost is the TRU BOOST Gauge capable of controlling?
A:  The internal pressure sensor is capable of reading up to 29 PSI of boost. If you have a higher boost application, we offer an external pressure sensor that will read up to 60 PSI of boost. Please visit the Sensors and Connectors page on our website for more information.

Q:  What is the warranty on AEM electronics?
A:  Please note that before we can issue a Returned Merchandise Authorization number (RMA) for AEM Electronics products, it is first necessary for the installer or end user to contact our Electronics tech line at 1-800-423-0046 to discuss the problem. Most issues can be solved over the phone. Under no circumstances should a system be returned or RMA requested before the above process transpires.
